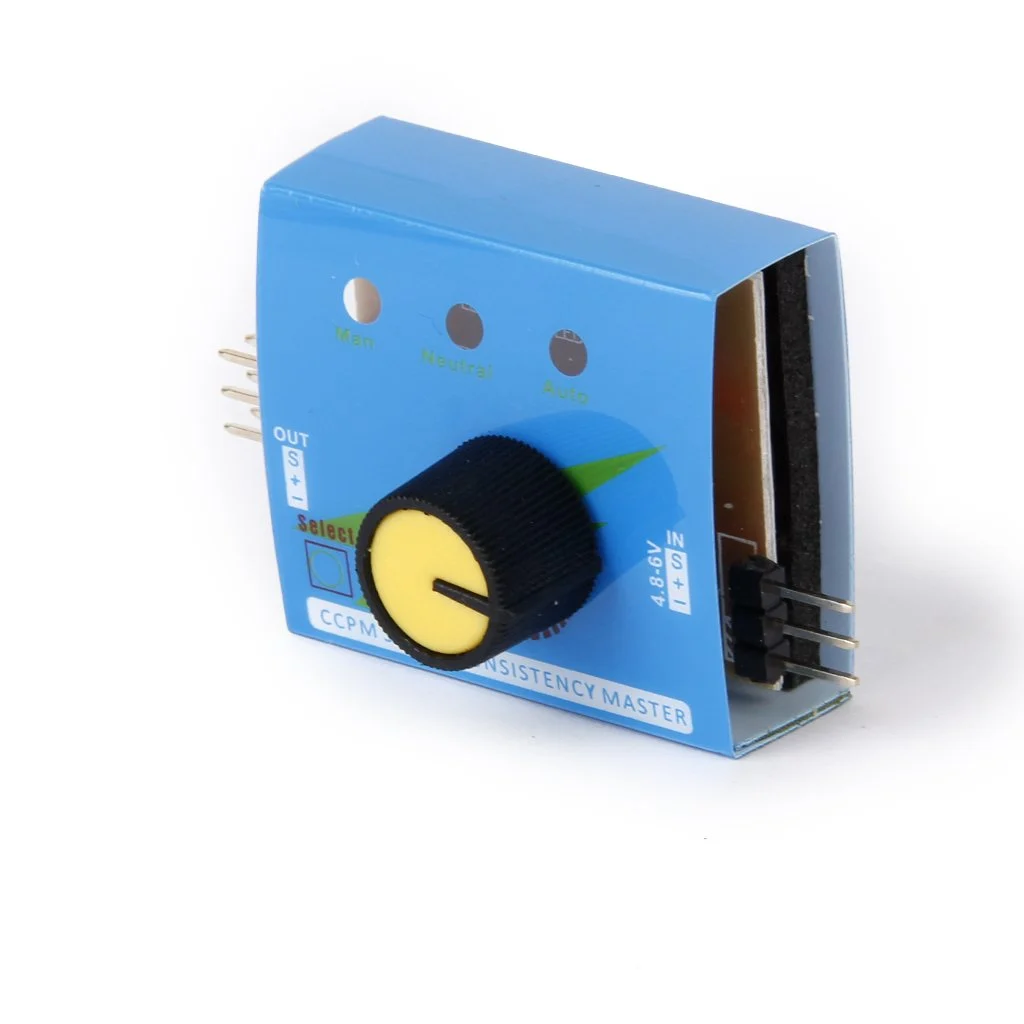

Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control
- Operating Voltage: DC 4.8-6V
- Offer 3 modes to check servos or ESC
- The Manual Mode allows you to turn the knob to different speeds and check the reaction time
- The Neutral mode makes the servo go back to the neutral point
- The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
- Connect to up to 3 servos simultaneously
The Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control features three modes for testing servos or ESCs. In Manual Mode, you can adjust the knob to different speeds and observe the reaction time. Neutral Mode returns the servo to its neutral position, while Automatic “Window Wiper” Mode allows the servo to swing like a windshield wiper at the maximum angle.
This versatile multi servo tester can connect up to three servos simultaneously, and you can also connect up to three ESCs to test and compare their reaction times. Order yours today!
Features :
- Offer 3 modes to check servos or ESC
- The Manual Mode allows you to turn the knob to different speeds and check the reaction time
- The Neutral mode makes the servo go back to the neutral point
- The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
- Connect to up to 3 servos simultaneously
- Connect up to 3 ESCs to test and compare their reaction time respectively
- Built with LED indicators
Specification
Item Type: | Servo Tester |
---|---|
Color: | Blue |
Operating Voltage (VDC): | 4.8 ~ 6 |
Output | 15mA (5.0) |
Output Signal | 1.5ms±0.5ms |
Dimensions (L x W x H) mm | 35x30x15 |
Knob Diameter(mm) | 12 |
Package includes :
1 x GT POWER 3-Channel Multi Servo Tester
