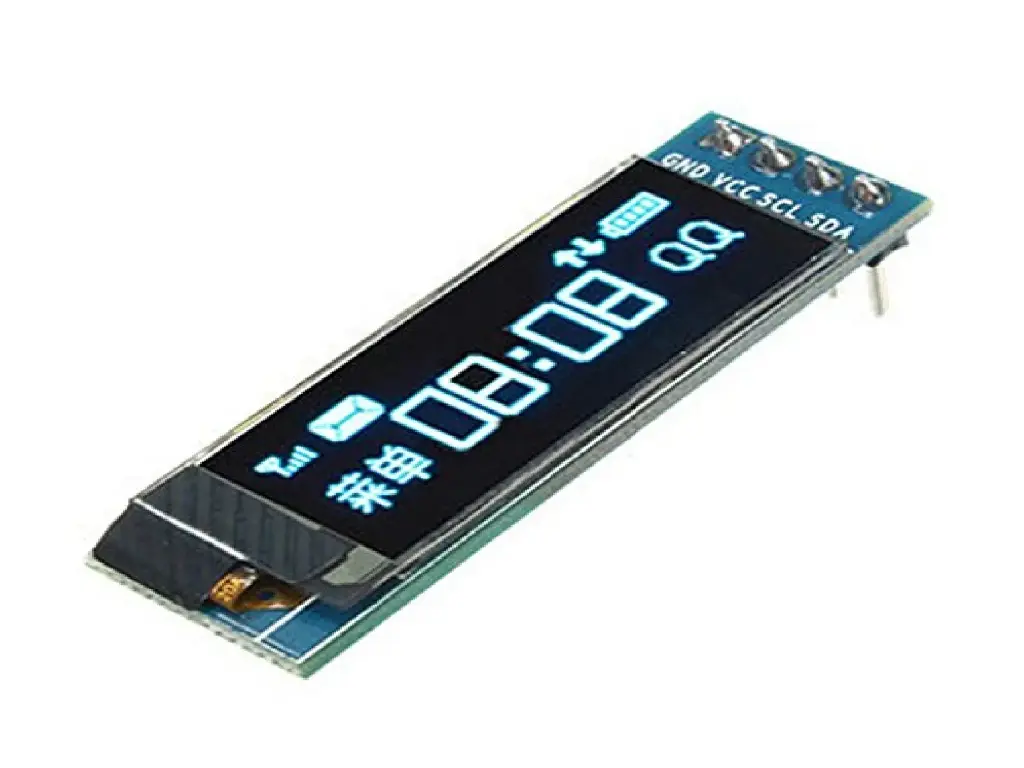

0.91 inch 128×32 Blue OLED Display Module with I2C/IIC Serial Interface
OLED displays represent the future of screen technology, offering significant advantages over traditional LCD and LED displays.
One of the standout features of OLED displays is their lack of a backlight; instead, the organic materials themselves exhibit a property called Electroluminescence (EL), causing them to glow when an electric current is applied. This makes them incredibly energy-efficient!
The 0.91-inch 128×32 OLED Display Module boasts a resolution of 128×32 pixels. It is thinner than LCD screens, provides excellent brightness, and delivers vibrant, true colors.
This compact OLED module enhances the user interface experience for your Arduino projects. It connects easily via the I2C (or IIC) serial interface.
Powered by a DC 2.8V supply, the 0.91-inch 128×32 OLED Display Module produces sharp blue text on a black background, ensuring excellent contrast and a wide viewing angle.
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Features:
No need of the backlight
The display is self-illuminating
Power requirement is low
They are offering a large viewing angle
Better performance characteristics than traditional LCD and LED displays.
Specifications:
| Pixel Resolution | 128 x 32 |
|---|---|
| Character Color | Blue |
| Background Color | Black |
| PCB Size (mm) | 38×12 |
| Weight (g) | 0.004 |
Package Includes:
1 x 0.91 inch 128×32 OLED Display Module with I2C/IIC Serial Interface
